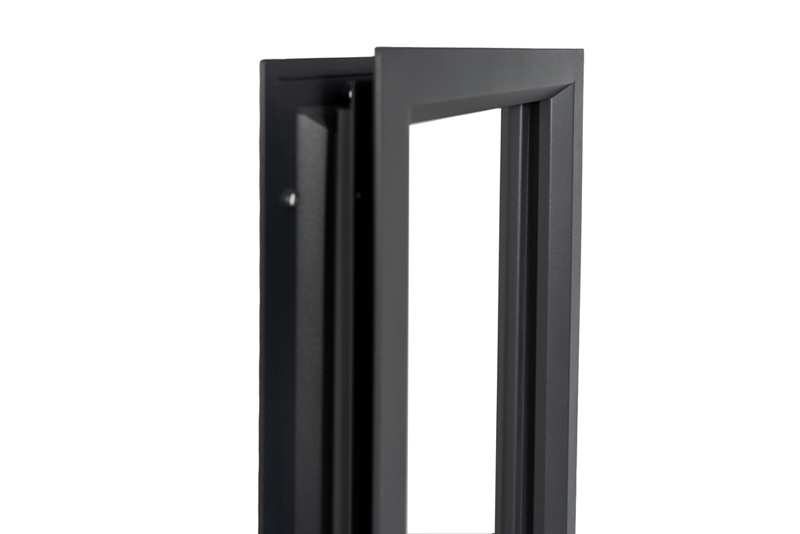

Name   -  Steel Vision Frames/Vision Panels

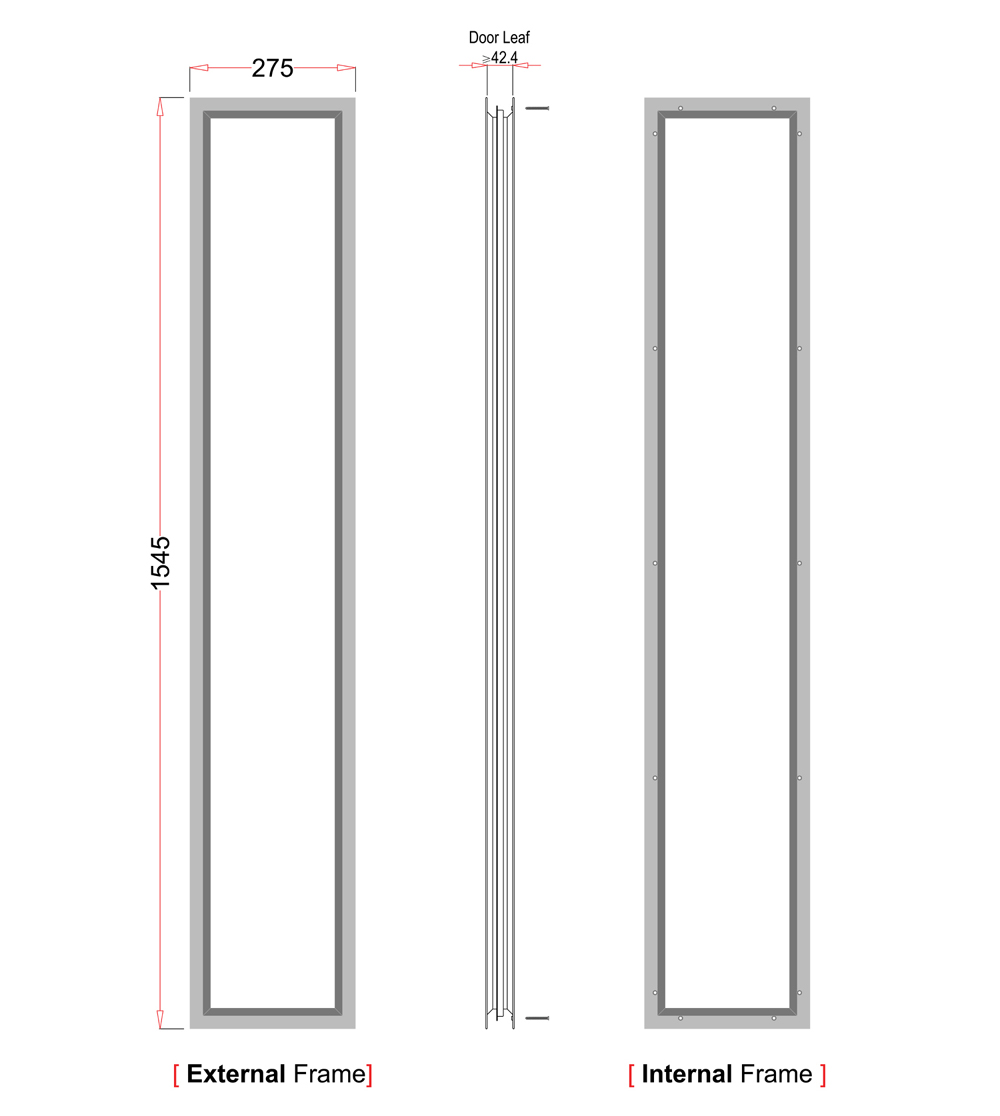

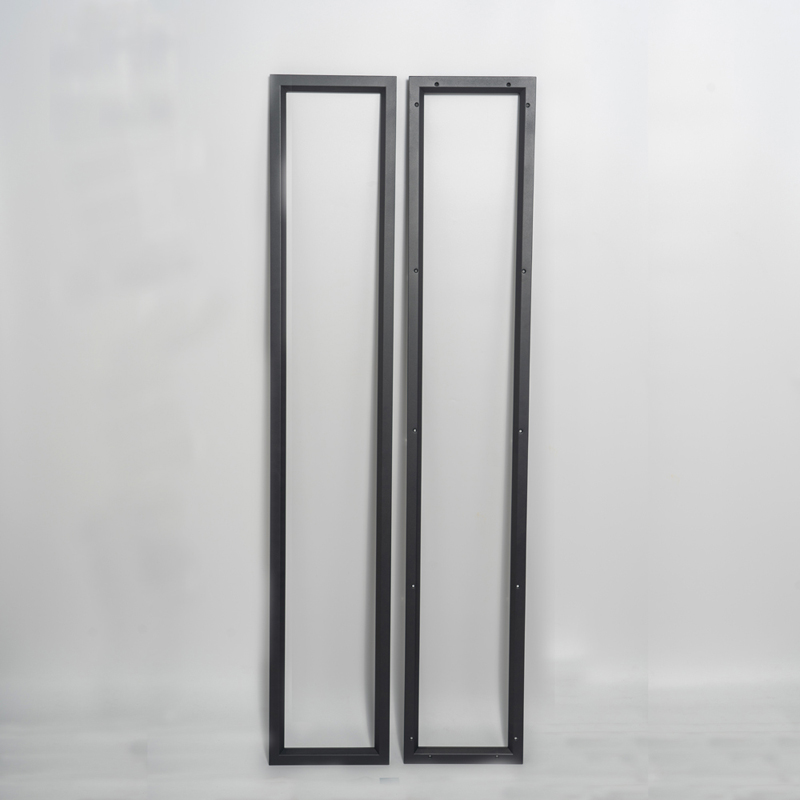

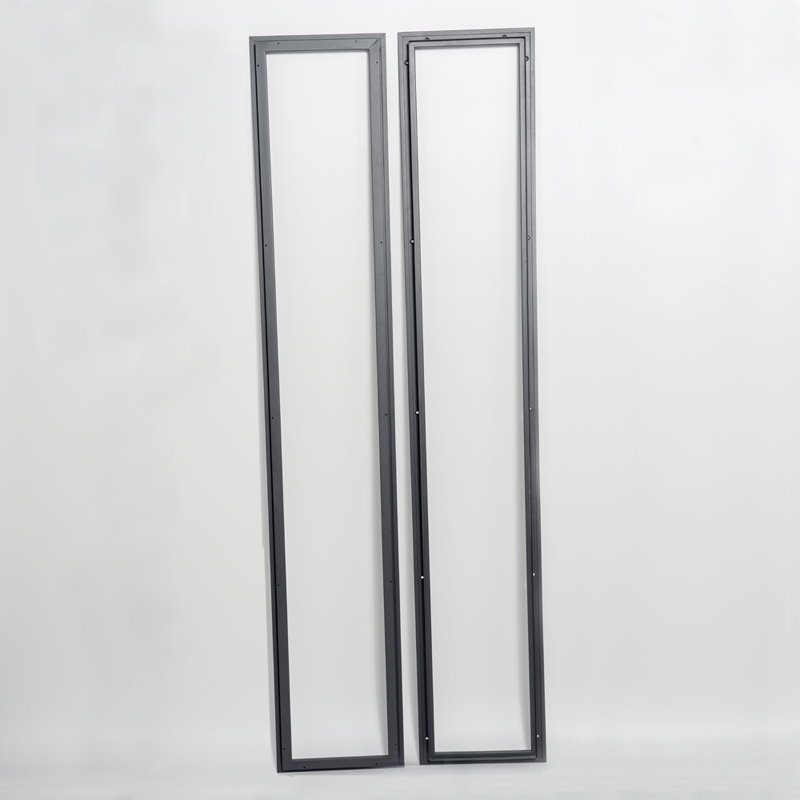

Component - (Beveled) Internal Frame & External Frame

Specification:

               Frames Overall Size   -  275*1545mm

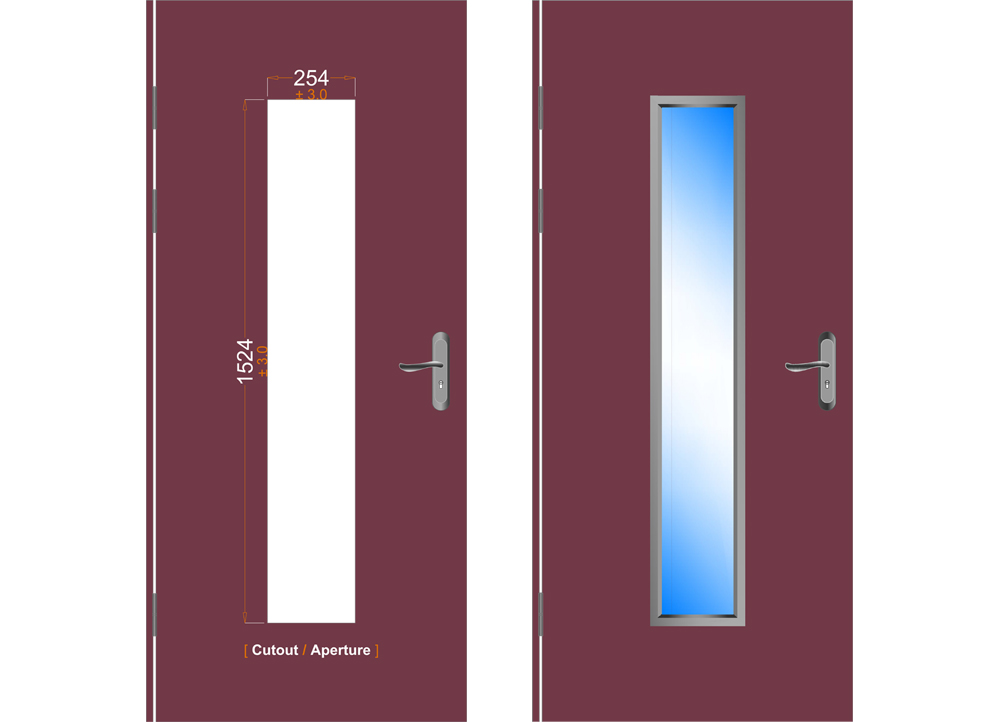

               Door Aperture Cutout Size   -  254*1524mm (±3.0mm)

               Material   -  Galvanized Steel Plate

               Frame Guage   -  1.2mm thick

               Space for Door Leaf   -   Min.  42.4mm

               Space for Glass   -   Min.  8.8mm

               Primary Finish   -  Powder Coating

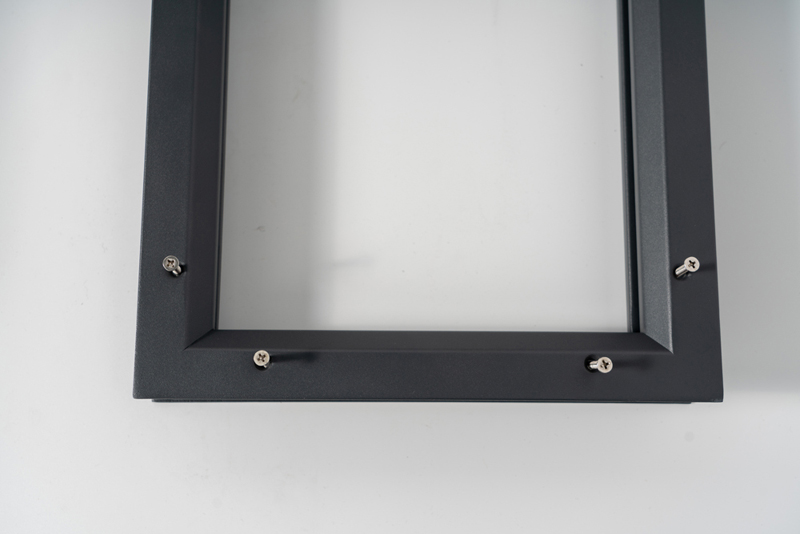

               Installation   -  Self-attaching, Screwed

Features:

               ※ Max. Vision Size As Possible

               ※ Easy & Fast Installation

               ※ Prying Resistance

               ※ Strong Structure

               ※ Convenient Maintenance

               ※ Vary Color Options

               ※ Recyclable

Before Installation:

               ※ Door Leaf Required   -    ≥ 45 mm

               ※ Door Aperture Required   -  Standard shape, Tolerance ±3.0mm

Application/Usage For:

               Fire Exit Doors, Warehouse Doors, Garage Doors, Classroom Doors, Commercial Security Doors, Power Distribution House/Room Doors, Hollow Metal Doors

VARY Primer Surface & COLOR OPTIONS
